B/WINGS
the ultimate solution for open field maintenance

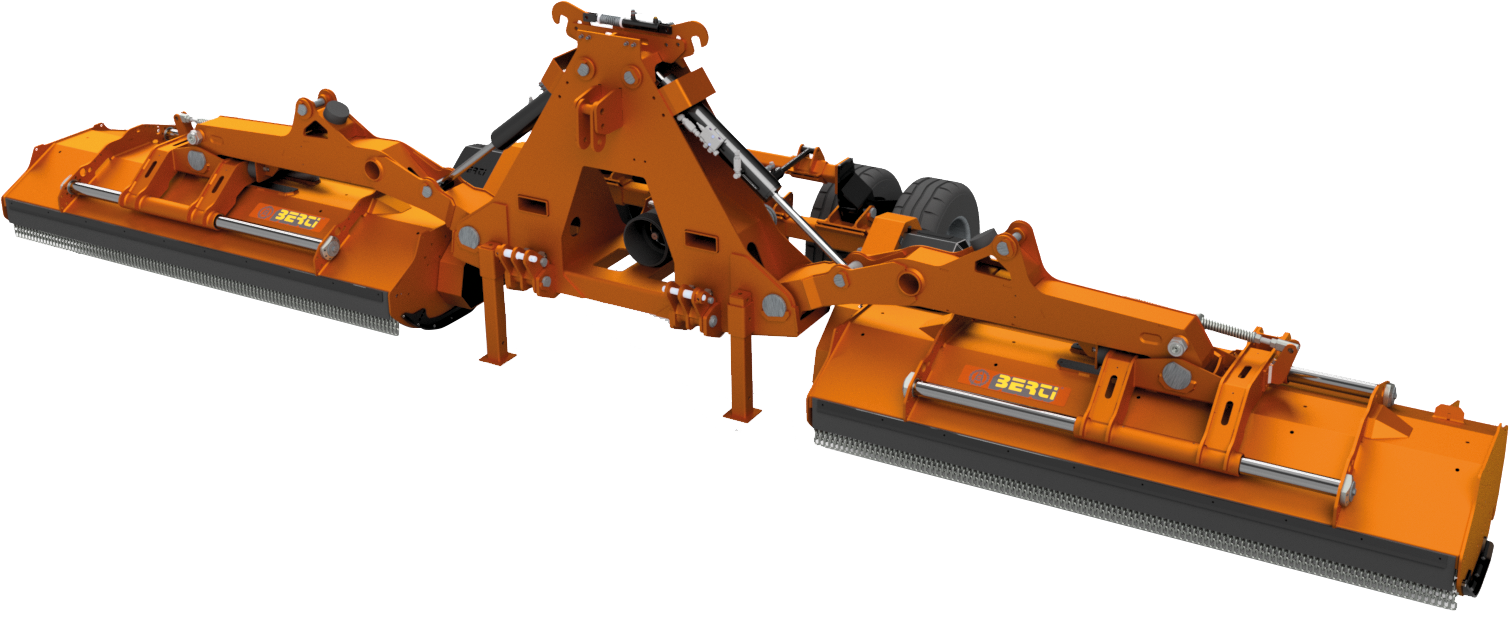

B/WINGS represents the next generation of mulching systems for large areas.
It consists of two rear folding mowers combined with a third front mower, ensuring wide, even coverage and high productivity.
Designed for use in open fields, B/WINGS is ideal for managing fallow land, cover crops and set-aside areas, where effective and continuous tillage is required, even on uneven ground.
The range offers working widths from 8.00 to 8.80 metres, achieved using 2.80- and 3.00-metre mulching heads, which can be configured according to operational requirements and available power.
It is suitable for tractors with an output of 250 to 400 hp.
Unlike other solutions on the market, B/WINGS features rear tiller arms that can be moved sideways by up to 25 cm, allowing the working position to be adjusted to suit the ground conditions or the tractor’s configuration.
This feature allows you to adjust the overlap and ensures a uniform cut even close to edges or on uneven surfaces.
Robust construction, efficiency and productivity come together in a single machine designed for those who need to tackle large areas with maximum output and the reliability that has always been the hallmark of the Berti brand.
STANDARD EQUIPMENT
- 3-Point linkage Kat. 3-4, with mechanical schock-absorber.
- Double chassis made of wear-resistant material.
- Double transmission.
- Freewheel in the gearbox (1-3/4” Z20 input shaft).
- Full automatic belt tensioners.
- Hydraulic side shift of the heads on chrome-plated tubes.
- Greasing system with grouped spots.
- Heavy duty rear rollers Ø 220, with bolted end bearing housings.
- Floating system “X-FLOAT” on the side mulchers.
- Safety hooks for transport on road.
- Front protectors by chains and rubber.
- 3x row of counter-blades, bolted on.
- Forged and hardened BERTI type “A” hammers.
- LED lighting kit and road transport signs.
- Supports integrated into the frame, for vertical parking.
- PTO 1000 rpm.
- CE safety guards.
ACCESSORIES ON REQUEST
Twin wheel kit (central frame) with hydraulic adjustment, for road transport.
Kit steering wheels (4x) in lieu of the rear rollers (surcharge).
Greasing system full automatic (surcharge).
Kit (2x) scraper for rollers
Hour meter (vibration)
PTO Drive Shaft
cutting tools
