IS/P
STONE BURIERS for MAX Ø 15 CM STONES
IS/P is a stone burier designed for heavy-duty work, capable of burying stones up to 15 cm in diameter, suitable for tractors with power ratings between 130 and 220 HP.
It is available in four sizes: 250, 300, 350 and 400 cm. The rotor is equipped with flanges with six outward-facing helical blades, while the machine has a side chain transmission in an oil bath with automatic chain tensioner, stone guard and levelling bar, to ensure stability and precision during operation.
The interrasassi can be equipped with a mesh roller, cage roller or packer, depending on the requirements of the terrain.
On request, it is possible to add the track breaker kit, the hydraulic roller displacement kit, the right or left ploughshare kit and the cardan shaft with automatic limiter, making the machine extremely versatile and customisable.
STANDARD EQUIPMENT
- Floating 3-point linkage Cat. II-III.
- Double chassis.
- Single-speed gearbox, PTO 1000 rpm.
- Rotor speed 263 rpm.
- PTO drive shaft with slip clutch.
- Double transmission through chain, in oil bath.
- Automatic chain adjuster.
- Double flanges rotor, with 6 spiral C-blades.
- Rotor with waterproof bearing seals, in oil bath.
- Stone guard grid.
- Levelling bar.
- Accident prevention protections according to CE directives.
ACCESSORIES ON REQUEST
- Hydr. adjustment of the roller
- Kit frontal eradicators (2x)
- Kit ridger discs right hand side
- Kit ridger discs left hand side
- PTO drive shaft with automatic cut-out clutch

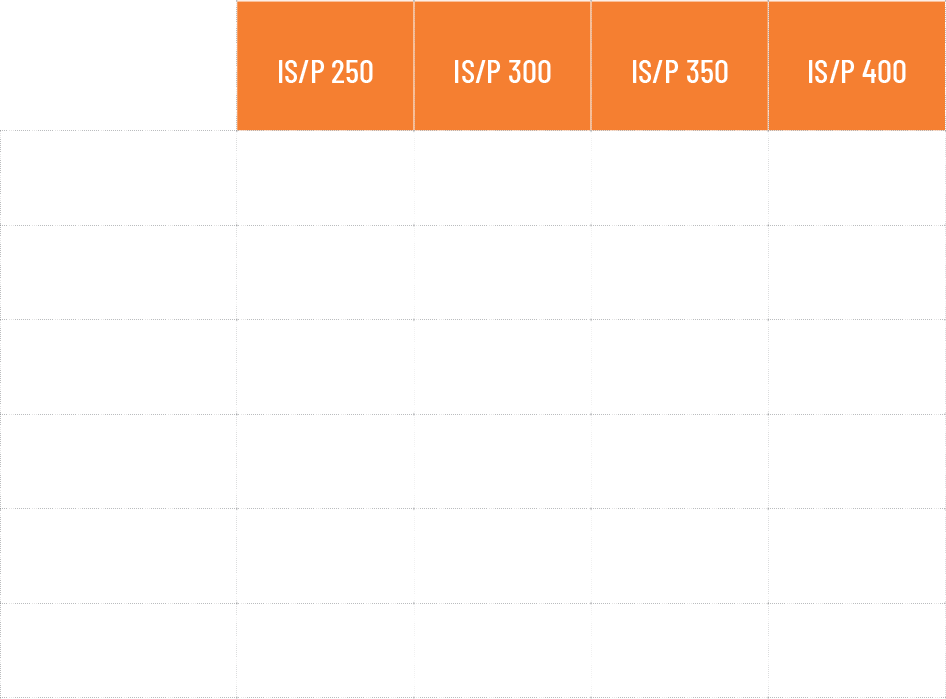

models
