IS/M
STONE BURIERS for MAX Ø 8 CM STONES
IS/M is a stone burier designed to bury stones up to 8 cm in diameter, suitable for tractors with power ratings between 30 and 75 HP, ideal for intensive work and for precise and uniform soil preparation.
It is available in six sizes: 120, 135, 140, 165, 185 and 205 cm. The rotor is equipped with flanges with six outward-facing helical blades, which guarantee high crushing capacity and perfect soil mixing. The machine is equipped with a side chain transmission in an oil bath with automatic chain tensioner and a stone guard, ensuring robustness, safety and reliability over time.
The interrasassi can be configured by choosing between a mesh roller, cage, packer or skids, depending on the type of soil and the desired finish.
On request, it is possible to add the front and rear levelling bar and the seed drill kit, as well as replacing the mechanical shift with a hydraulic one. The roller offset kit is also available, both mechanical and hydraulic, as well as the right or left ploughshare kit, which excludes the front refinement bar.
STANDARD EQUIPMENT
- 3-point linkage Cat. I-II.
- Single-speed gearbox, PTO 540 rpm.
- Rotor speed 220 rpm.
- PTO drive shaft with slip clutch.
- Chain transmission, in oil bath.
- Automatic chain adjuster.
- Rotor flanges with 6 spiral C-blades.
- Stone guard grid.
- Accident prevention protections according to CE directives.
ACCESSORIES ON REQUEST
- Kit mech. sideshift of rear roller
- Hydr. Side shift of the roller
- Kit hydr. height adjstment of rear roller
- Kit frontal levelling bar
- Kit rear levelling bar
- Wheelbarrow seeder
- Ridger disc, right hand side, no model 120 and without frontal levelling bar
- Ridger disc, left hand side, no model 120 and without frontal levelling bar

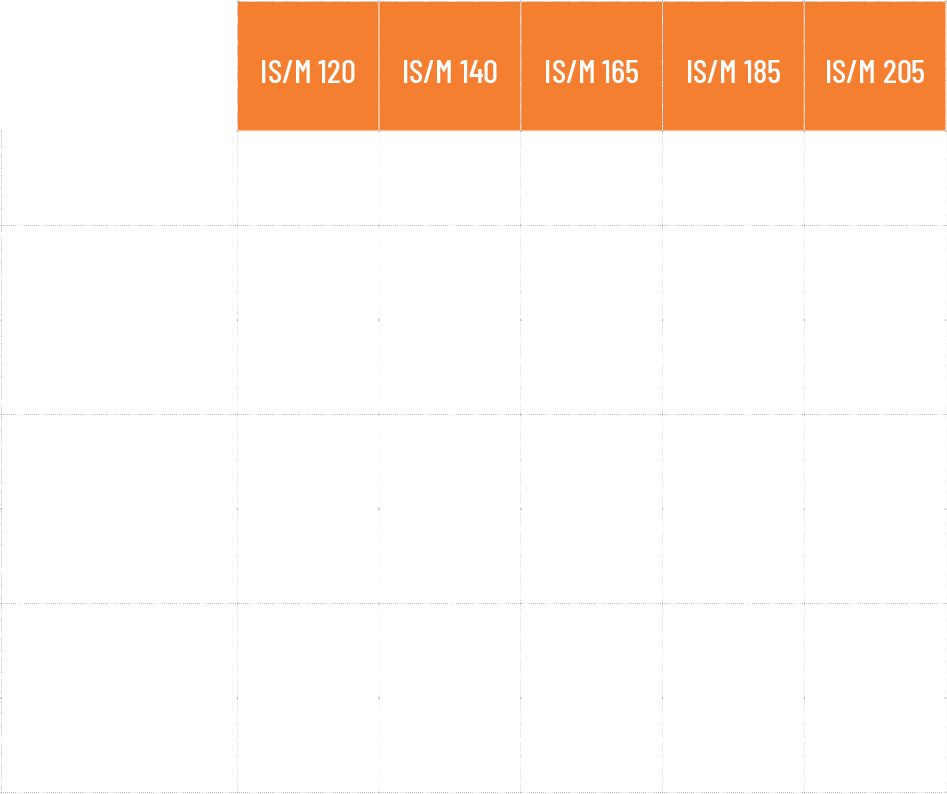

models
