IS/L
STONE BURIERS for MAX Ø 6 CM STONES
IS/L is a stone burier designed to bury stones up to 6 cm in diameter, suitable for tractors with power ratings between 20 and 45 HP, ideal for effective and professional soil preparation.

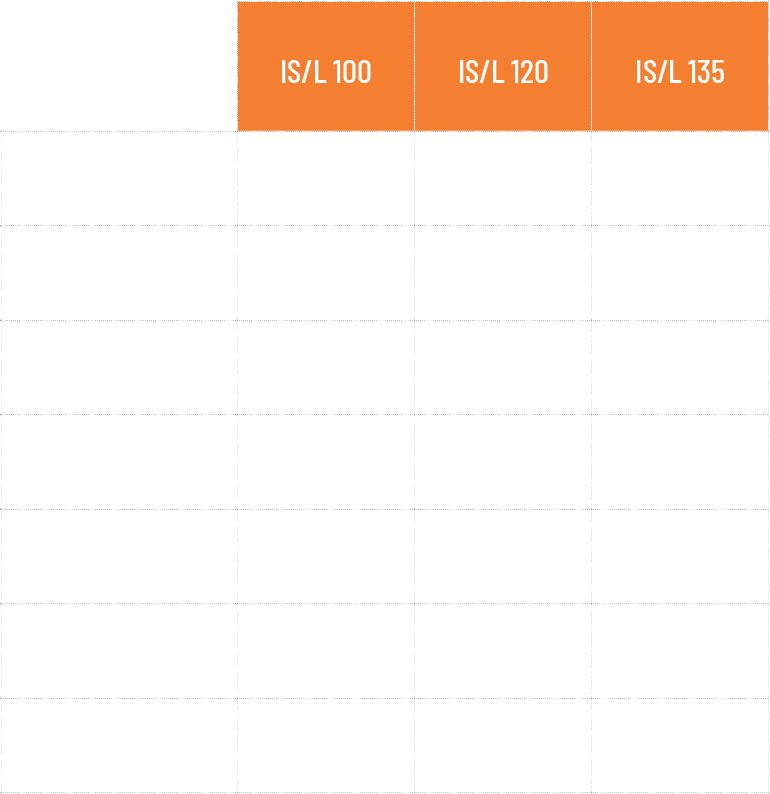

It is available in three sizes: 100, 120 and 135 cm. The rotor is equipped with flanges with 4 outward-facing helical blades, a solution that guarantees uniform working action and proper soil mixing. The machine is equipped with a side chain transmission in an oil bath with automatic chain tensioner and mechanical displacement, ensuring reliability and durability even in harsh working conditions.
The interrasassi can be configured by choosing between a mesh roller, cage, packer or skids to suit different working requirements and soil conditions.
On request, it is possible to add the rear levelling bar, the front levelling bar and the seed drill kit, as well as replacing the mechanical shift with a hydraulic one. It is also possible to add the roller offset kit, available in both mechanical and hydraulic versions, making the IS/L an extremely versatile and customisable machine.
STANDARD EQUIPMENT
- 3-point linkage Cat. I.
- Single-speed gearbox, PTO 540 rpm.
- Rotor speed 240 rpm.
- PTO drive shaft with slip clutch.
- Chain transmission, in oil bath.
- Automatic chain adjuster.
- Rotor flanges with 4 spiral C-blades.
- Mechanical side shift.
- Stone guard grid.
- Accident prevention protections according to CE directives.
ACCESSORIES ON REQUEST
- Hydraulic side shift of the machine
- Manual side shift of the roller
- Hydr. Side shift of the roller
- Kit frontal levelling bar
- Kit rear levelling bar
- Wheelbarrow seeder 100
