IS/H
STONE BURIERS for MAX Ø 12 CM STONES
IS/H is a stone burier designed to bury stones up to 12 cm in diameter, suitable for tractors with power ratings between 100 and 170 HP, ideal for intensive work and for preparing large areas of land.
It is available in three sizes: 250, 280 and 300 cm. The rotor is equipped as standard with flanges with six outward-facing helical blades, while on request it can be replaced with the version with double welded flanges for even more demanding applications. The machine is equipped with a side chain transmission in an oil bath with automatic chain tensioner, a solution that guarantees reliability, durability and reduced maintenance.
The interrasassi can be configured with a cage roller or a packer roller, depending on the type of soil and the desired level of refinement.
On request, it is possible to add the rear levelling bar, the track breaker kit, the hydraulic roller displacement kit, the right or left ploughshare kit and the cardan shaft with automatic limiter can be added on request, making the machine extremely versatile and adaptable to all operating requirements.
STANDARD EQUIPMENT
- Floating 3-point linkage Cat. II-III.
- Double chassis.
- Gearbox, PTO 1000 rpm.
- Gears transmission, in oil bath.
- Rotor speed 230 rpm.
- Automatic chain adjuster.
- Rotor flanges with 6 spiral C-blades.
- Rotor with waterproof bearing seals, in oil bath.
- PTO drive shaft with slip clutch.
- Accident prevention protections according to CE directives.
ACCESSORIES ON REQUEST
- Hydr. adjustment of the roller
- Kit frontal eradicators (2x)
- Kit rear levelling bar
- Double Flanges (welded) on the rotor
- Ridger disc, right hand side
- Ridger disc, left hand side
- PTO drive shaft with automatic cut-out clutch

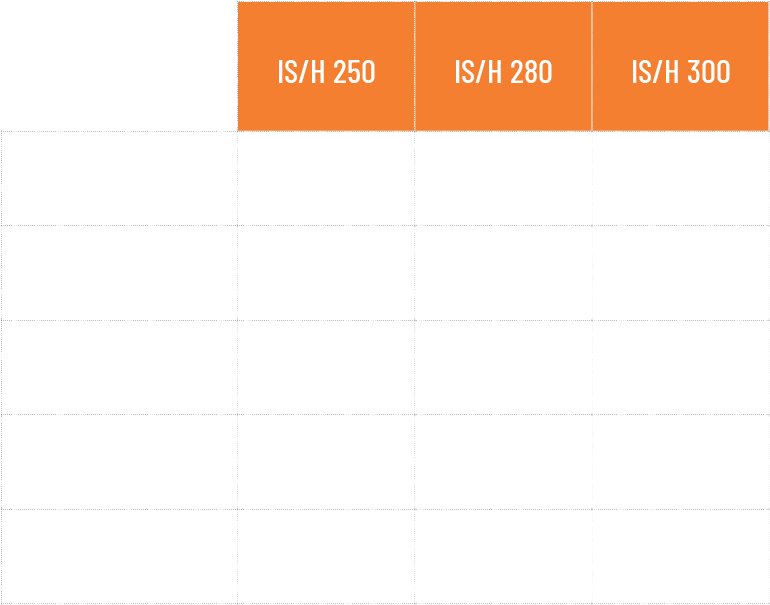

models
