ADRIATICO
POWER HARROW
ADRIATICO is a rotary harrow designed for tractors with power ratings from 50 to 110 HP, ideal for professional soil preparation for sowing in agriculture, ensuring efficiency even on large areas and different types of soil.
It is available in sizes 110 – 130 – 150 – 180 – 205 – 230 – 250 – 300 and can be equipped with cage, spikes, spiral, net or packer, offering great versatility according to operational requirements.
Standard equipment includes Cat. II oscillating three-point hitch, single-speed gearbox at 540 rpm, rotors at 260 rpm, cardan shaft with safety bolt limiter, rotor with anti-clogging circular tines, movable side panels, quick roller adjustment and floating roller, ensuring stability, safety and uniformity in processing.
On request, the machine can be equipped with a rear levelling bar kit, hydraulic roller adjustment, track breaker kit, hydraulic seed drill attachment, stone guard kit for rotor, tooth block stops, cardan shaft with clutch and disc plough kit, for a completely customised and professional configuration.
STANDARD EQUIPMENT
- Floating 3-point linkage Cat. II.
- Single-speed gearbox, PTO 540 rpm.
- Rotor speed 260 rmp.
- PTO Drive Shaft with shear bolt (1 3/8” Z=6 tractor side).
- Rotors with rounded shape, anti-clogging.
- Flexible sides of body.
- Quick device for roller height adjustment.
- Floating device on the roller.
- Accident prevention protections according to CE directives.
ACCESSORIES ON REQUEST
- Double frontal eradicator (no models 110-130-150)
- Quick Release of blades
- Stone guard kit for rotor
- Kit bloc for tooth fixing
- Tooth, right hand, with 33cm length
- Tooth, left hand, with 33cm length
- Hydr. adjustment of the roller
- Kit rear levelling bar
- Kit rear levelling bar net roller
- Hydraulic 3-point frame (for seeder machine)
- Wheelbarrow seeder
- Double ridger disc (no models 110-130-150)
- PTO Drive Shaft with slip clutch (surcharge)

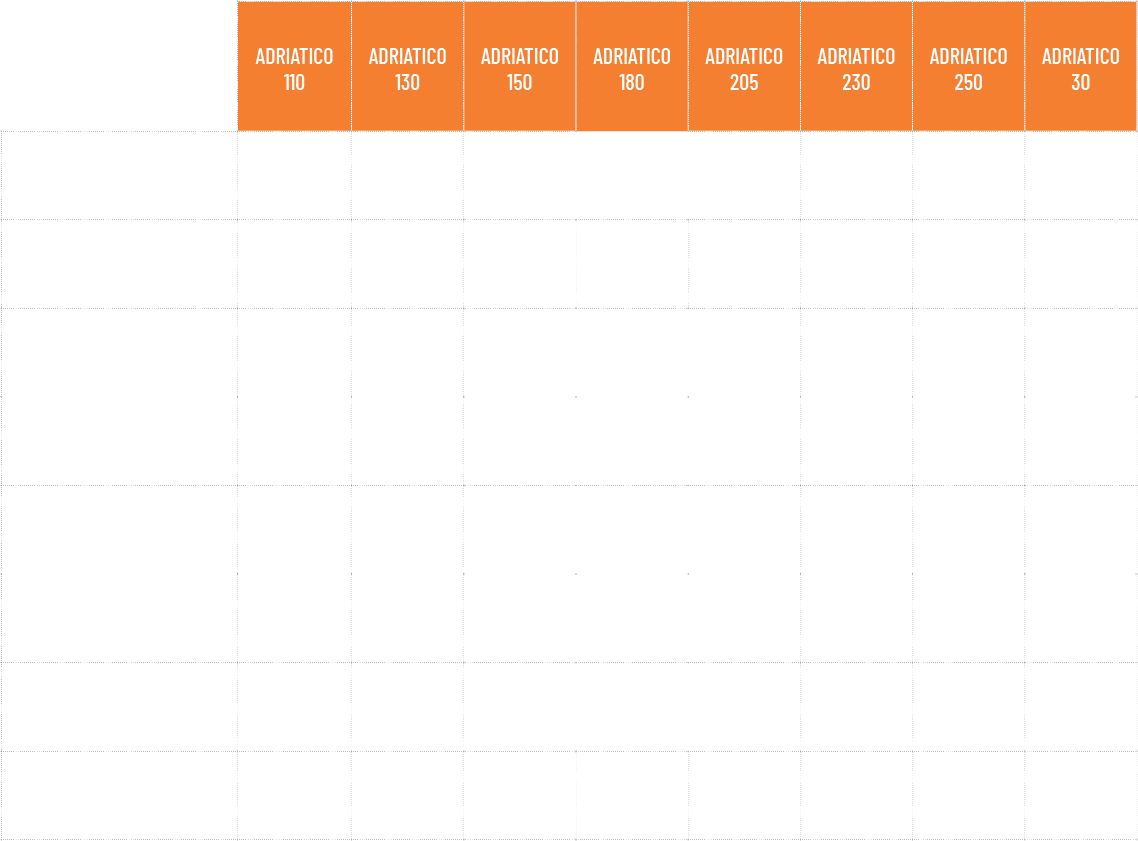

models
